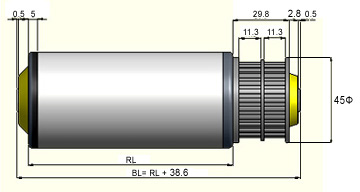

T5 Timing Belt Pulley |
 |
|

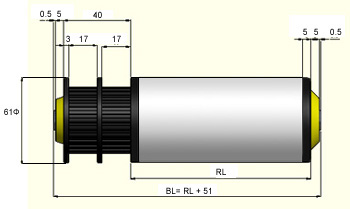

T10 Timing Belt Pulley |
 |
|
|
| |
| ¡D |
Roller Diameter : from 25mm diameter on or Upon Custom Fabrication |
| ¡D |
Roller Tube Materials : Stainless Steel, Stainless Clad Steel, Mild Steel (Zinc plated, Chrome plated, Hard Chrome plated, Self
Colour), Aluminum or ABS |
| ¡D |
Tooth Details : T5*26T or T10*18T, Single or Double Rows |
| ¡D |
Tooth Materials : Plastic, Zinc-plated Mild steel (S45C) or Stainless Steel (SUS304 or 316) |
| ¡D |
Driven Way: Timing Belt |
| ¡D |
Bearing Type : Precision Sealed (ZZ) |
| ¡D |
Spindle Material : Stainless Steel, Zinc plated Mild steel, Chrome plated Mild steel, or Hard-Chrome Mild steel |
| ¡D |
Spindle Details : Spring loaded, Female threaded, Male threaded, Milled flat ,Cross Drilled or Upon Custom Fabrication |
| ¡D |
Tube Coverings : Black rubber, Urethane Rubber, Vulcanized Urethane Rubber,
PU, Anodized, Chrome plated, Hard Chrome plated, Polished or Upon Custom Fabrication. |
| ¡D |
.Roller Diameter : from 25mm diameter on or Upon Custom Fabrication |
| ¡D |
Roller's SPECIFICATION |
|
| |
|
|
